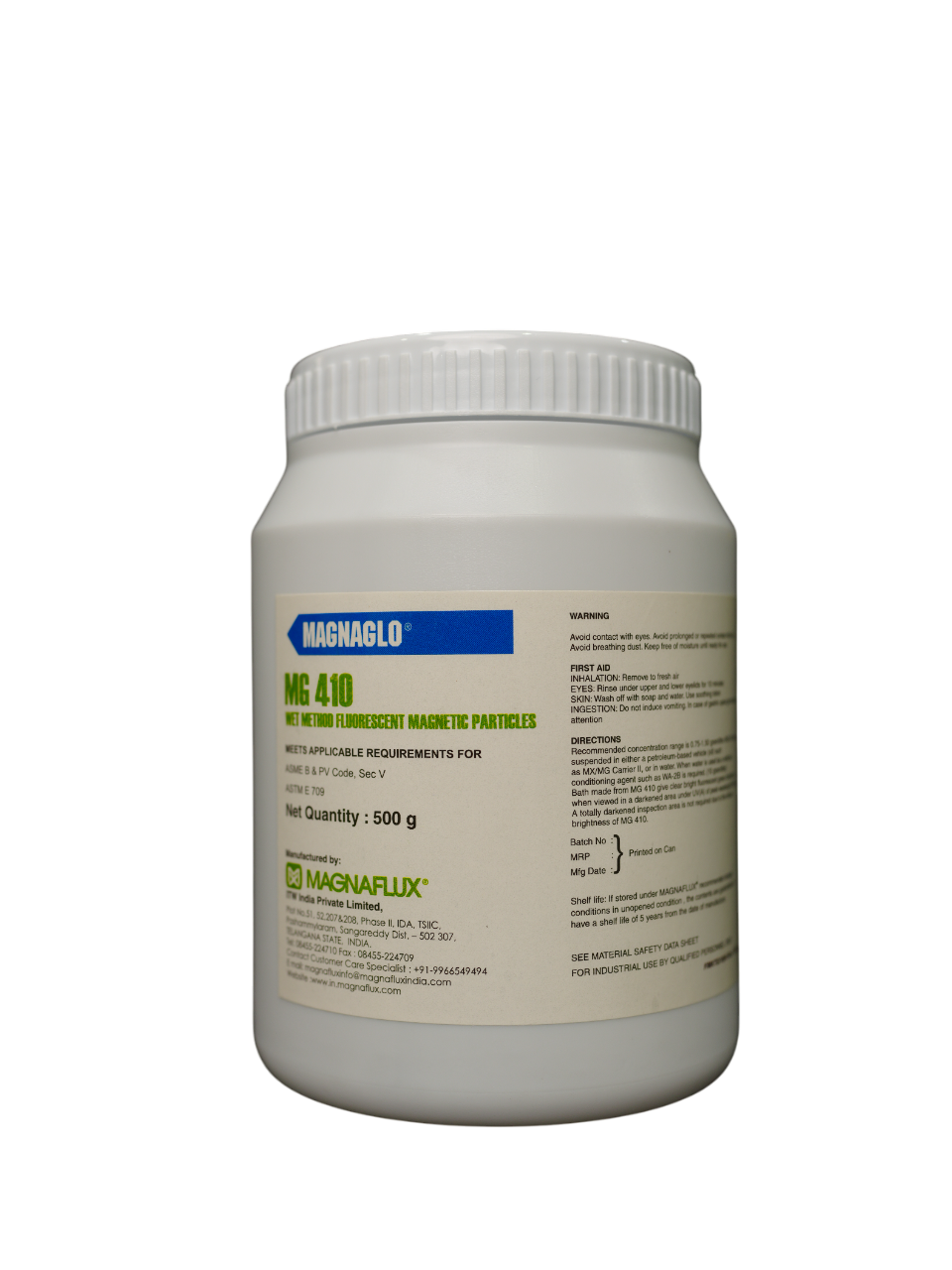

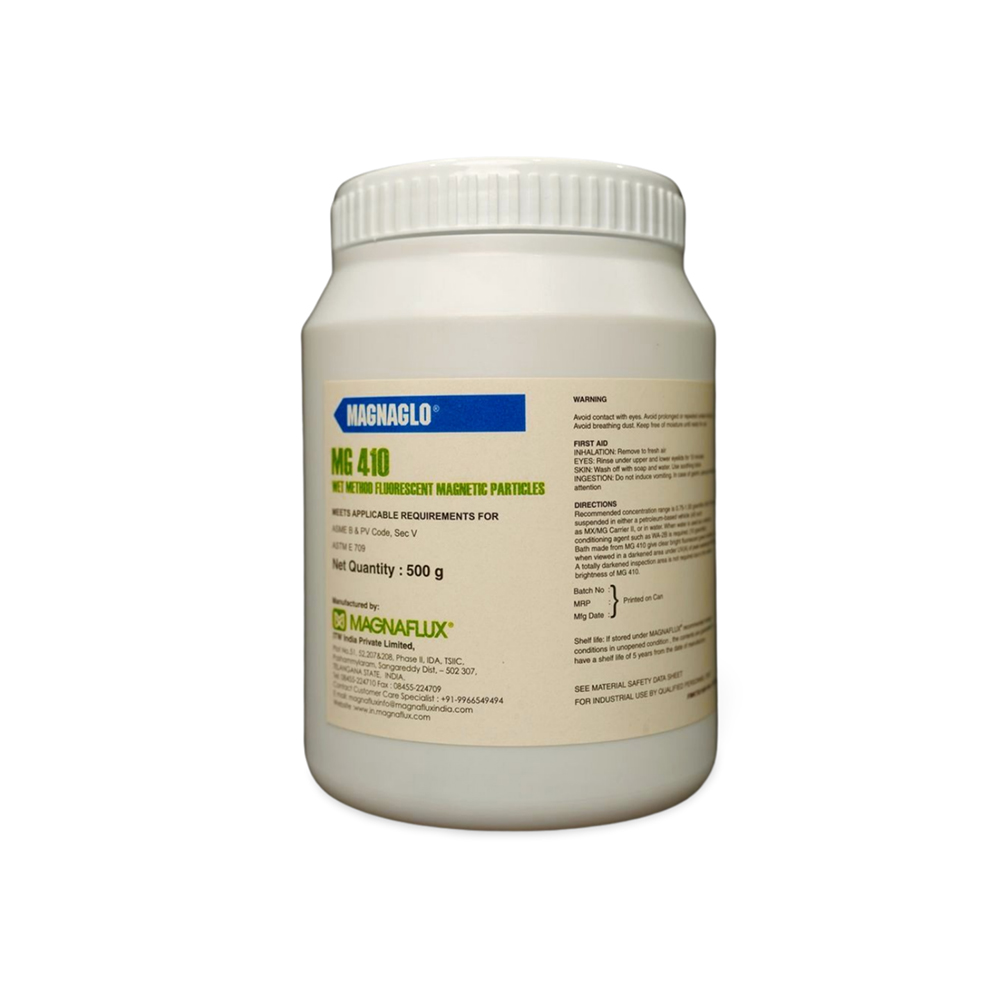

MG-410

Fluorescent Magnetic Particles

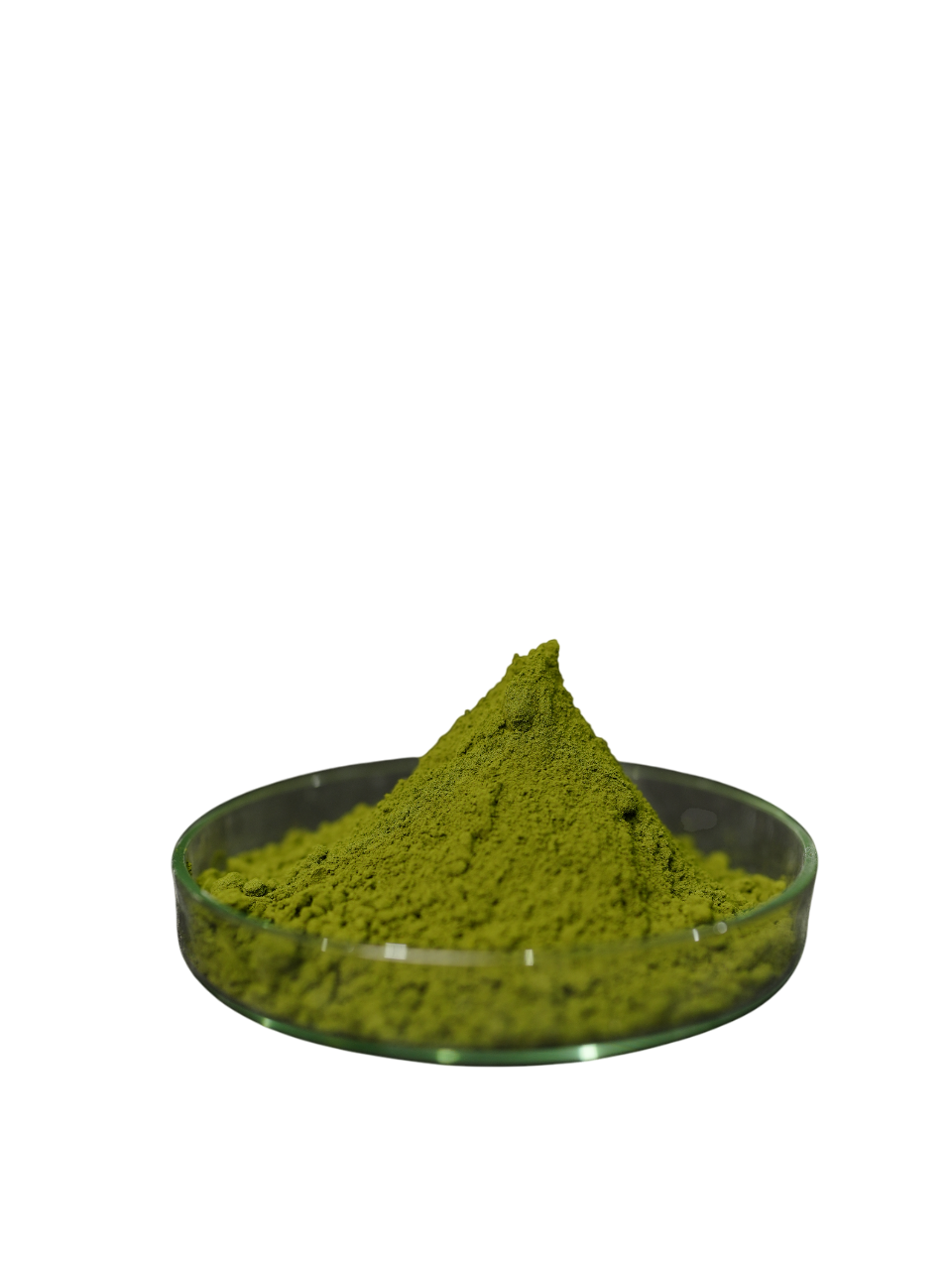

MG-410 is an ultra-bright fluorescent magnetic particle powder for locating small, medium, and large discontinuities. These particles provide clear, ultra-bright, fluorescent green indications under UV light with minimal background. MG-410 is designed for use in water or oil baths for wet method fluorescent magnetic particle testing. MG-410 is fluorescent powder which can be mixed with either water or oil for a wet-method inspection of metal parts. It detects medium to fine surface and slightly subsurface discontinuities such as cracks, inclusions, seams, tears, laps, flakes and welding defects. Indications appear an intense yellow-green under UV lighting. Conditioners for water baths - such as WA-2B - should be used for anti-foaming, corrosion inhibiting, as a wetting agent and to facilitate particle suspension.

Ordering Information

500 gF03012

1 KgF03013

Product Properties

NDT TypeFluorescent Magnetic Particle Testing

Particle Suspension VehiclePetroleum Distillate (Oil), Water

Required EquipmentMagnetizing device, UV light source

Applications

Ideal ApplicationAfter secondary processing, Castings, Detecting small, medium, and gross discontinuities, Forgings, Raw products/materials, Semi-dark environments, Textured/rough surface finishes, Unmachined parts, Welds

Defect ExamplesFatigue cracks, Grinding cracks, Inclusions, Laps, Quenching cracks, Seams, Shrink cracks, Tears, Welding defects

Compliance Title

StandardsASME BPVC, ASTM E709
