ZL-67 WW

Level 3 Water Washable Fluorescent Penetrant

A high-sensitivity Level 3 penetrant, ZL-67 WW fluorescent water removeable penetrant is designed to find smaller, finer indications in safety-critical components common to aerospace and engineering applications. ZL-67 WW penetrant is often used to find flaws in investment castings, jet engine components, and highly machined surfaces. ZL-67 WW is specially formulated for strong capillary action which allows it to penetrate defects quickly and bleed out into developer faster and more completely than other penetrants for stronger, higher contrast indications that are easier for inspectors to identify, even when the defects are very fine.

Ordering Information

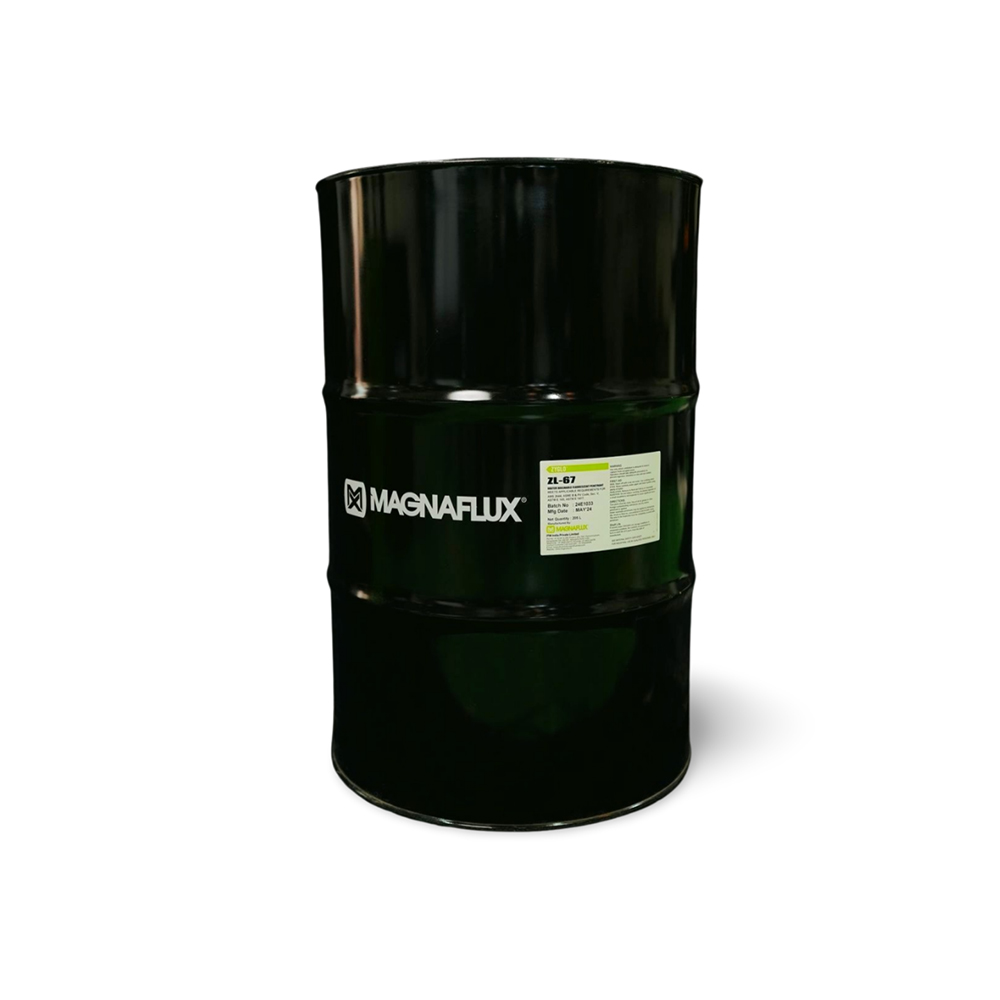

20 litresF02004

205 litresF02005

Product Properties

NDT TypeFluorescent Penetrant Testing

Penetrant TypeType 1

Fluorescent Penetrant SensitivityLevel 3 - High Sensitivity

Penetrant MethodsMethod A, Method C

Removal TypeWater Washable

Required EquipmentUV light source

Applications

Ideal ApplicationAerospace alloys, Aerospace inspections, Aluminum, Engineering applications, Highly machined surfaces, Investment castings, Jet engine components, Machined components, Nickel, Precision castings, Precision forgings, Steel, Titanium

Defect ExamplesCracks, Porosity, Seams

Compliance Title

StandardsAECL, AMS 2644, ASME BPVC, Boeing BAC 5423 PSD 6-46 or 8-4, Boeing PS-21202, General Electric P50YP107
