ZL-19 WW

Level 1 Water Washable Fluorescent Penetrant

A water-removable Level 1 penetrant, ZL-19 WW is designed for use on rough or unmachined surfaces such as castings and forgings to find larger discontinuities in non-safety critical components. It is ideal for inspecting automotive and general industrial components such as engine cylinder blocks, power train components, rocker arms, pistons, steering knuckles, etc. ZL-19 WW washes off parts with ease, leaving less background for clearer indications – even on rough surfaces. The quick rinsing reduces water usage in the inspection process, and the rinse water is easily treatable for simpler disposal. This economical fluorescent penetrant helps users reduce their over-all cost per part by reducing penetrant loss through drag-out, speeding up the washing and inspection process, and cutting rinse water costs.

Ordering Information

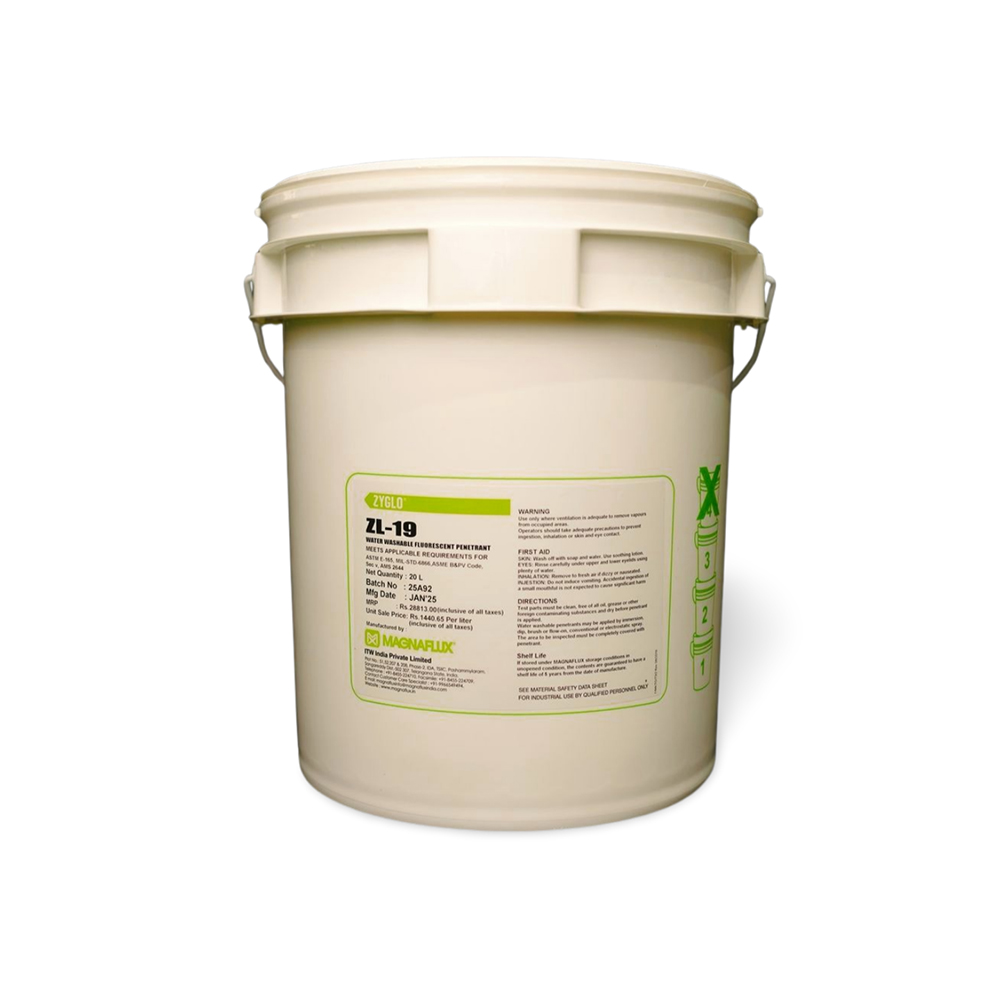

20 litresF02001

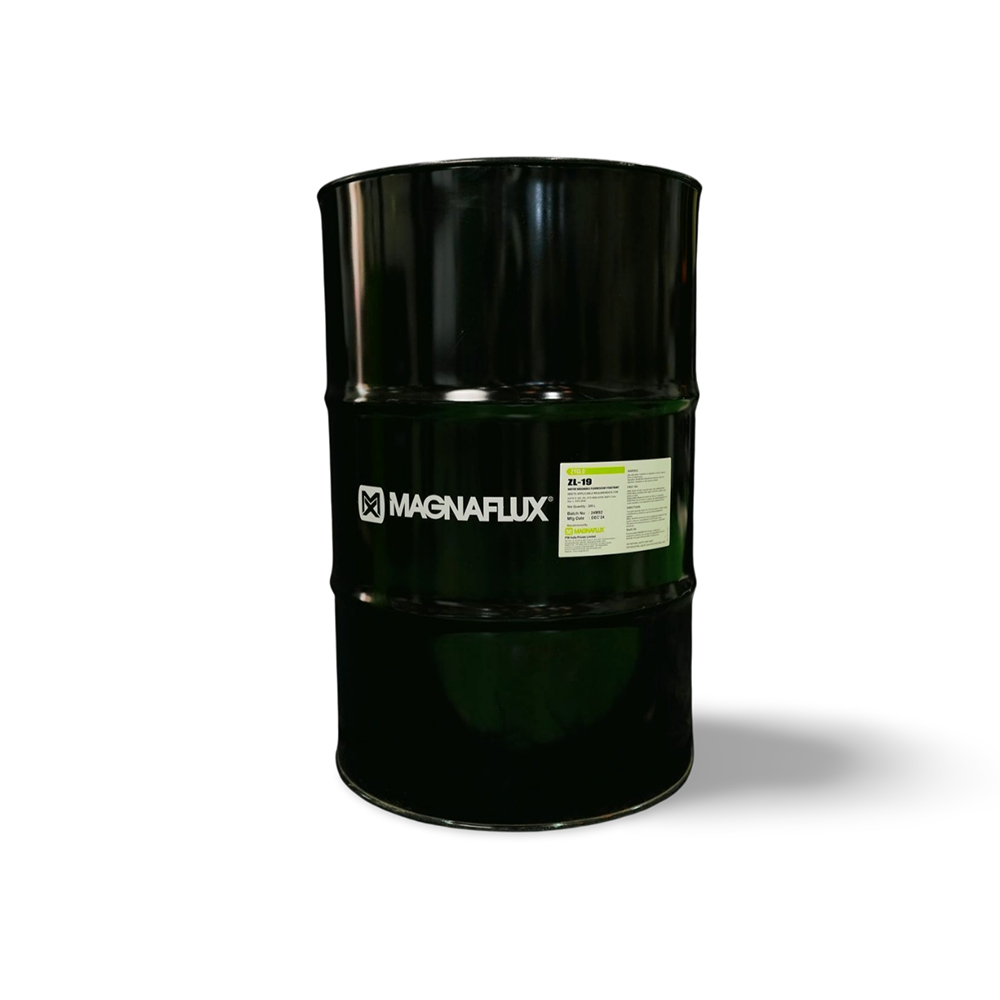

205 litresF02002

Product Properties

NDT TypeFluorescent Penetrant Testing

Penetrant TypeType 1

Fluorescent Penetrant SensitivityLevel 1 - Low Sensitivity

Penetrant MethodsMethod A, Method C

Removal TypeWater Washable

Required EquipmentUV light source

Applications

Ideal ApplicationCastings, Engine cylinder blocks, Forgings, Pistons, Power train components, Rocker arms, Rough surface finish, Steering knuckles, Unmachined parts

Defect ExamplesCold shuts, Cracks, Delamination, Laps, Porosity, Seams

Compliance Title

StandardsAECL, ASME BPVC, ASTM E1417, ASTM E2297, Boeing BAC 5423 PSD 6-46 or 8-4, Boeing PS-21202, General Electric P50YP107
