SKL-WP

Water Washable Visible Dye Penetrant

Developed for large surface areas and rough surfaces where excess penetrant is difficult to remove with a solvent removable cleaner or emulsifier, SKL-WP is a water-removeable dye penetrant for Type 2 penetrant testing in visible white light. This bright red penetrant is designed to wash off parts with ease, leaving less background for clearer indications – even on rough surfaces. The quick rinsing reduces water usage in the inspection process, and the rinse water is easily treatable for simpler disposal, for a reliable NDT process with less cost per part. This colour-contrast penetrant meets all NDT specifics for dye penetrant testing and can be used on a wide variety of metals, including non-ferrous and ferrous. FEATURES Outstanding penetrating characteristics Easy water-wash removal Vivid high-contrast colour Superior flaw resolution Excellent reliability Wide range of applications Excellent controlled washability over a wide temperature range and variable dwell times.

Ordering Information

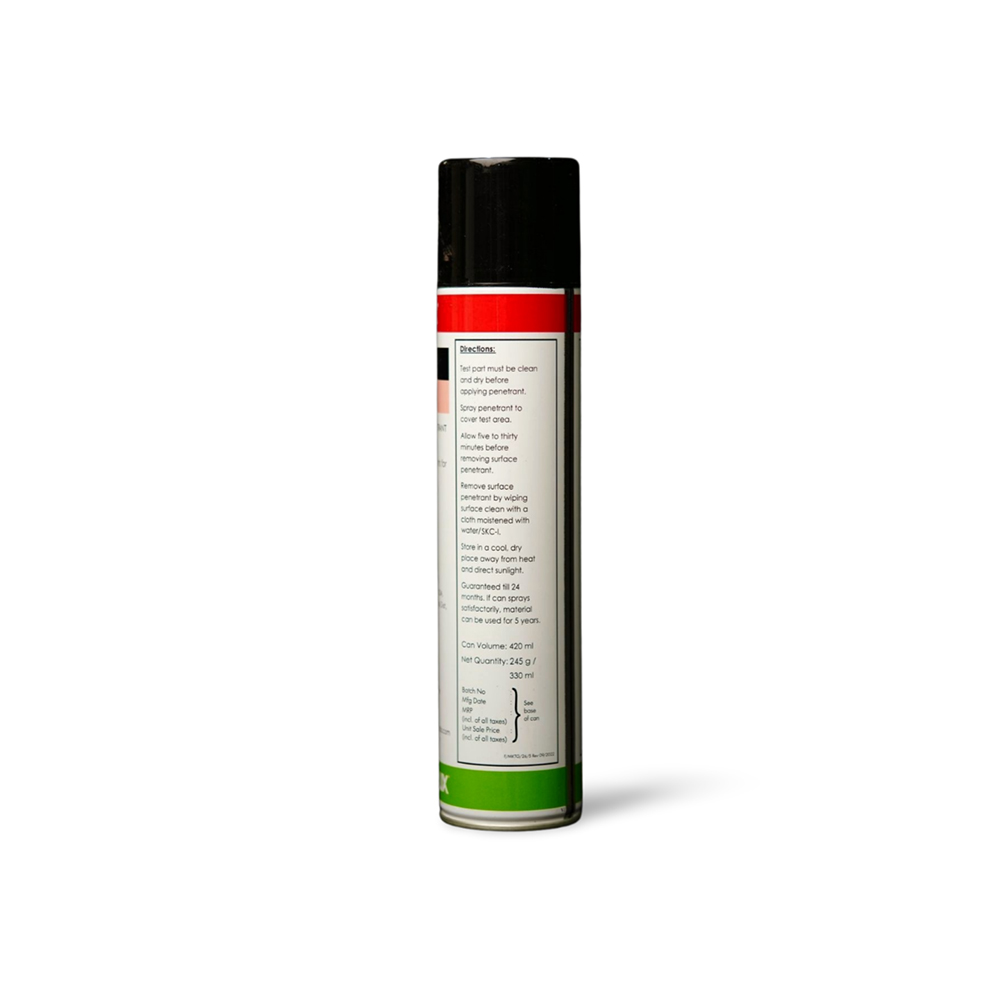

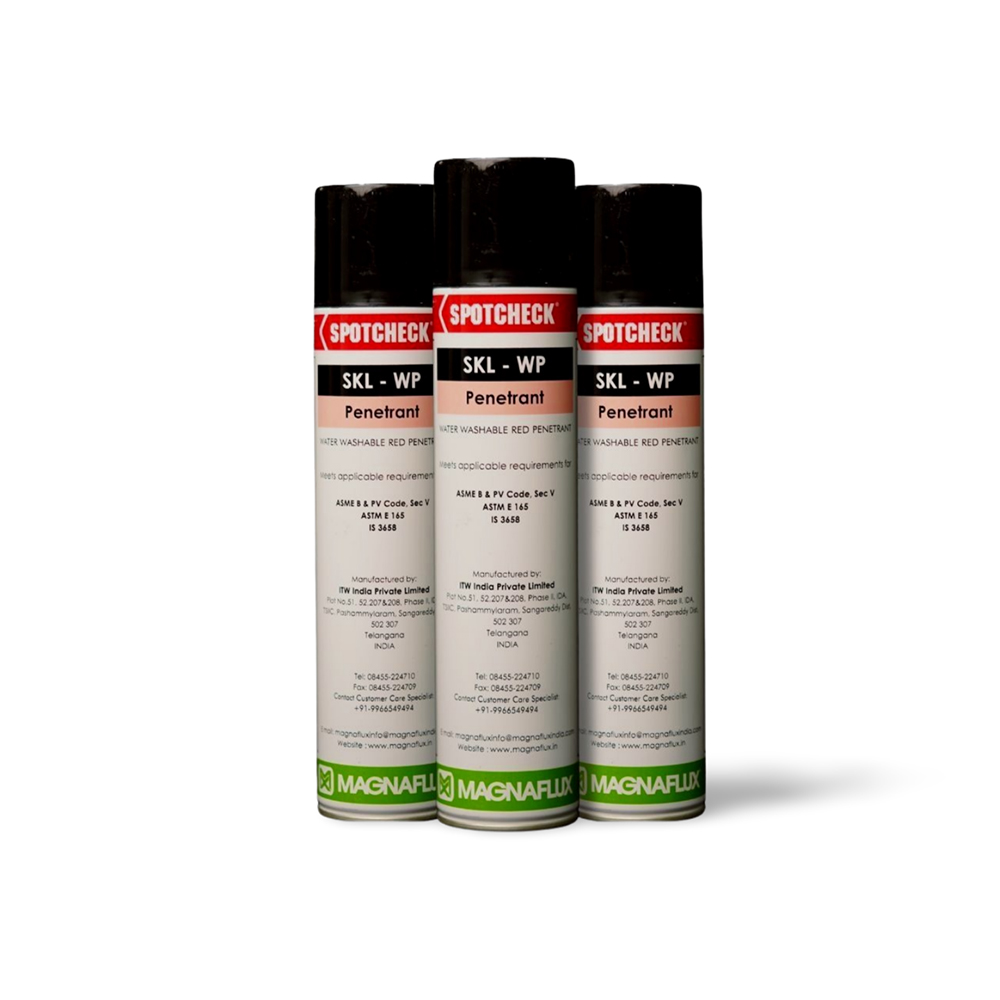

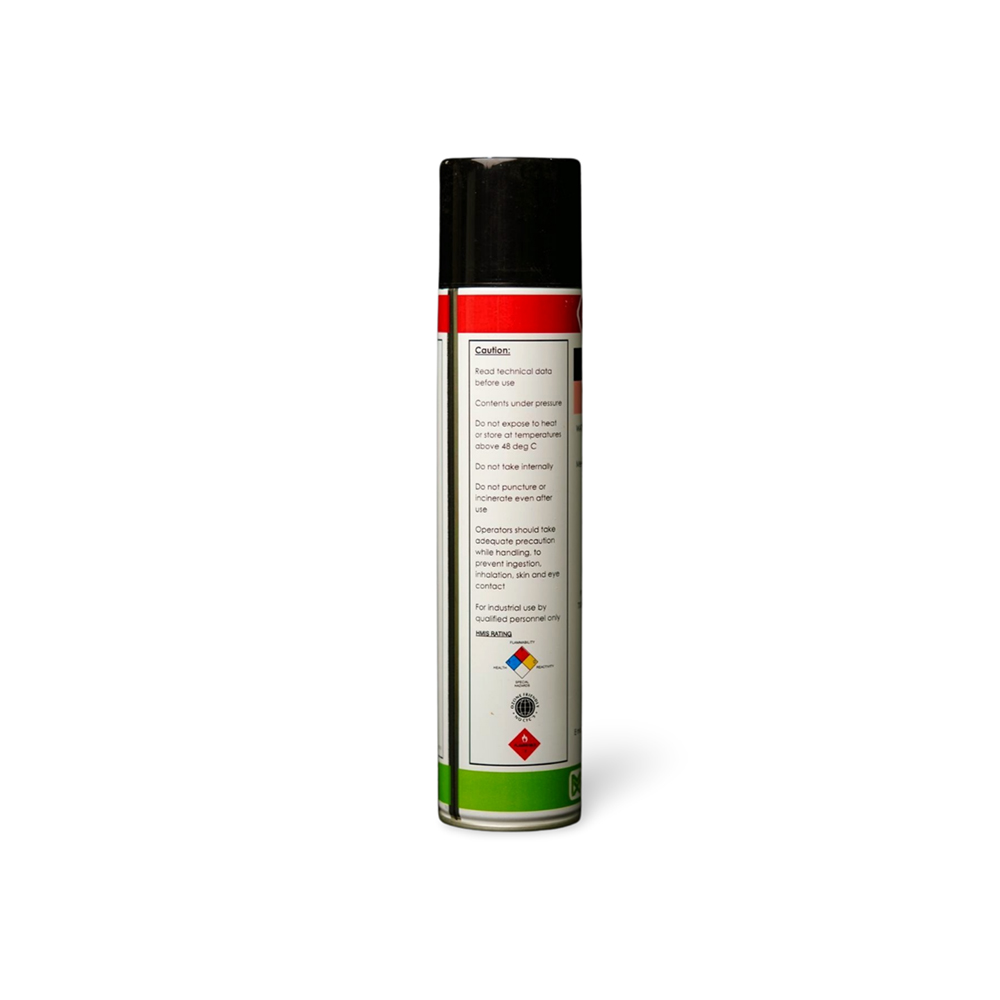

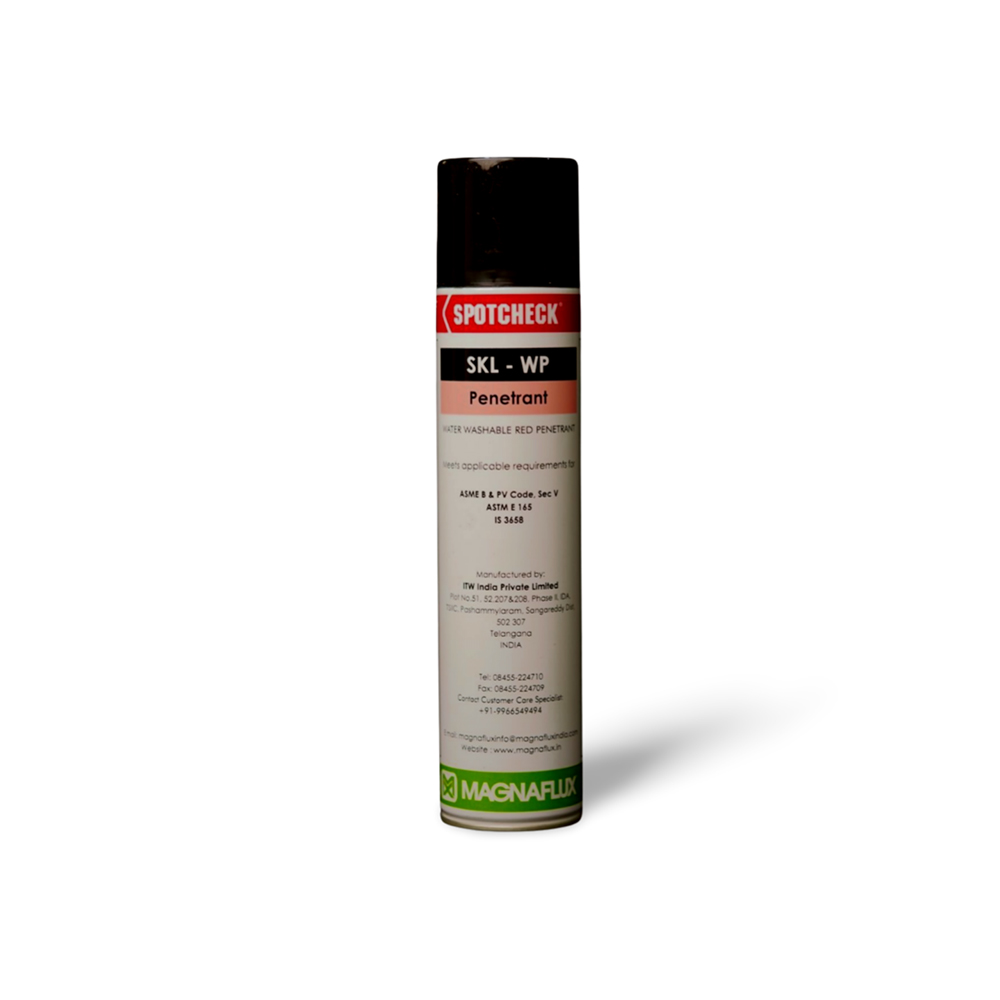

AerosolF01004

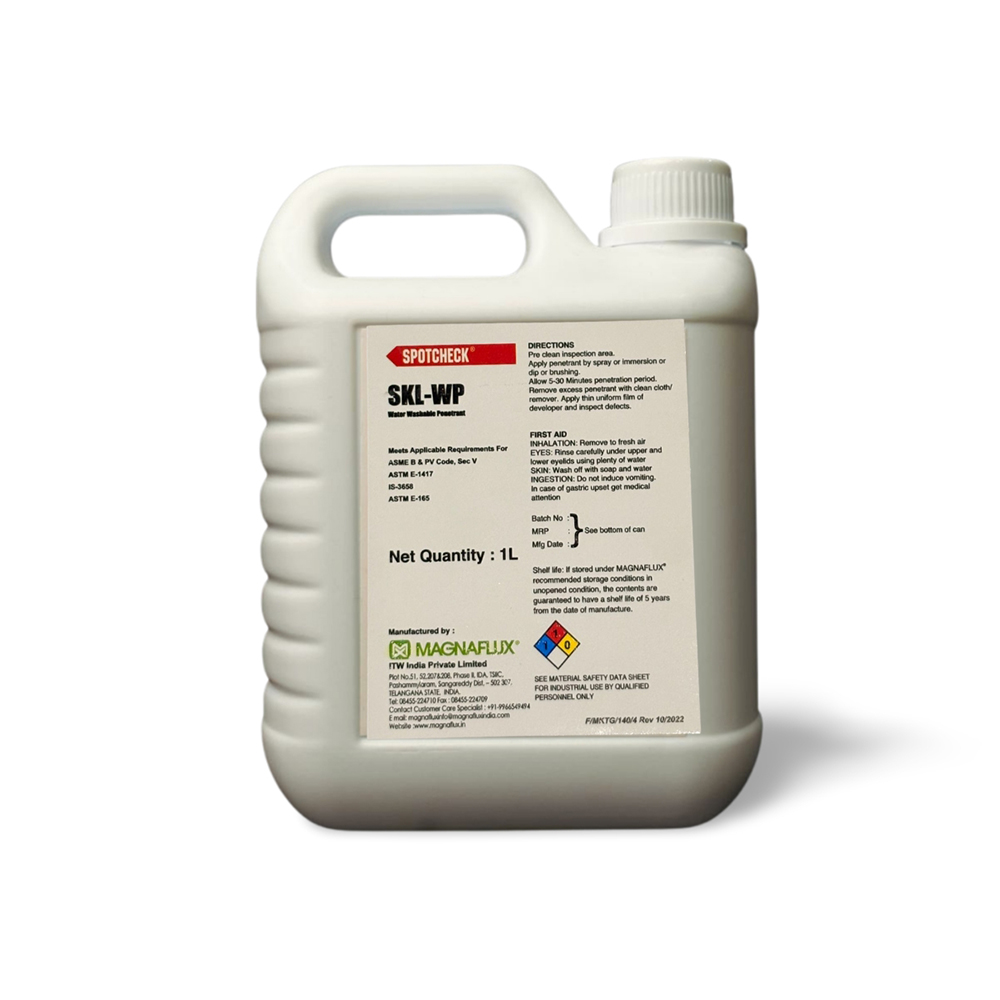

1 litreF01003

Product Properties

NDT TypeVisible Penetrant Testing

Penetrant TypeType 2

Penetrant MethodsMethod A, Method C

Removal TypeWater Washable

Applications

Ideal ApplicationCastings, Daily inspections, Forgings, Large parts, Leak detection, Metal work, Pressure vessels, Tubular goods, Welds, Wide range of applications

Defect ExamplesCracks, Flux inclusions, Incomplete weld fusion, Incomplete weld penetration, Leaks, Undercutting, Weld porosity

Compliance Title

StandardsAMS 2644, ASME BPVC, ASTM E1417, IS-3658
