SKL-SP2

Solvent Removable Visible Dye Penetrant

Developed for preventative maintenance, control checks and weld inspection, SKL-SP2 is a rich, vivid red dye penetrant for Type 2 penetrant testing in visible white light. This solvent-removeable penetrant is designed to provide complete, consistent test-surface coverage with minimal product for an optimal balance of reliability, performance and value. SKL-SP2 dependably locates surface flaws and discontinuities with a simple three-step process that is ideal for basic industrial NDT and for people looking to get into nondestructive testing. This colour-contrast penetrant meets all NDT specifics for dye penetrant testing and can be used on a wide variety of metals, including non-ferrous and ferrous, and on non-porous ceramics. FEATURES Outstanding penetrating characteristics Vivid, high-contrast red colour Superior flaw resolution Excellent reliability Wide range of applications Solvent removable Can be used for Method B, Method C and Method D Simple, easy-to-use process Good surface wetting Optimised capillary action Works in visible light Very low toxicity Low odour

Ordering Information

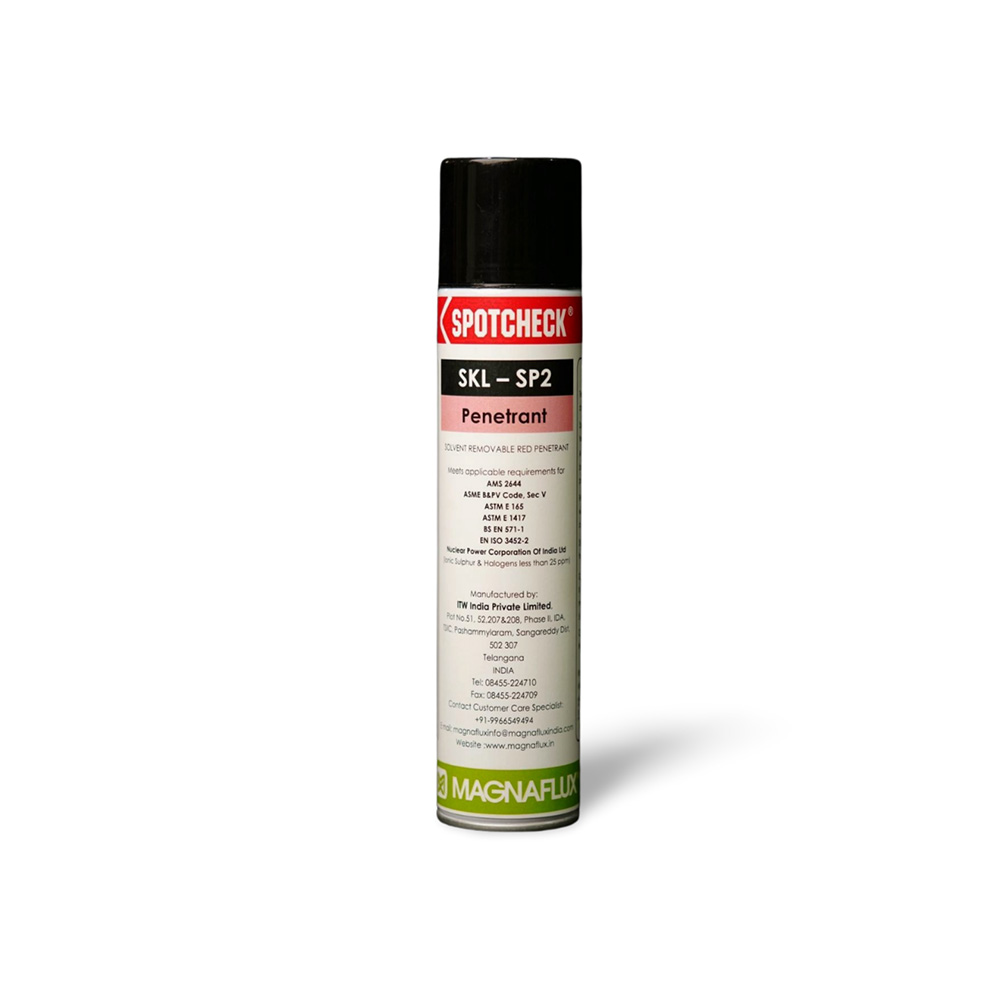

AerosolF01021

Product Properties

NDT TypeVisible Penetrant Testing

Penetrant TypeType 2

Penetrant MethodsMethod B, Method C, Method D

Removal TypeSolvent Removable

Applications

Ideal ApplicationAutomotive maintenance, Castings, Ferrous and non-ferrous metals, Forgings, Leak testing, Metalworking, Non-porous ceramics, Pressure vessels, Tubular goods, Welds

Defect ExamplesCracks, Flux inclusions, Inclusions, Incomplete weld fusion, Incomplete weld penetration, Leaks, Undercutting, Weld porosity

Compliance Title

StandardsAMS 2644, ASME BPVC, ASTM E1417, IS-3658, Nuclear Power Corporation of India Limited
